Home  >> 21-36mm > AS-3646B08-B27T



10-20mm 21-36mm 36mm above Rectangular Cabinet

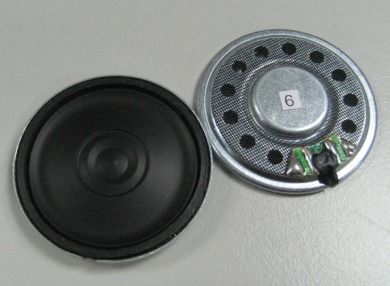

mini spekaermicro speaker

ITEM   SPECIFICATIONS
1 Type Dynamic speaker

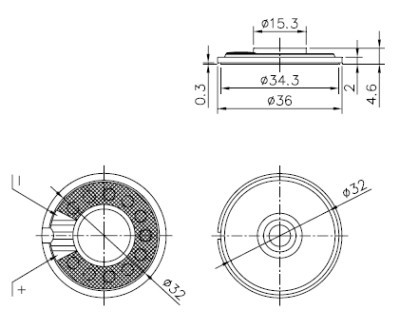

2 Dimension External diameter 36 mm
3 Rated Input Power 0.5 W
4 Max. Input Power 1.0 W for 1 Minute.
5 Impedance 8 ohm ± 15% at 1K Hz
6 Resonance Frequency (Fo) 500 Hz ± 20% at Fo, 1V
7 Sensitivity (S.P.L.) 90dB(0.1W/0.1m) ± 3 dB at AVE 0.8K,1.0K,1.2K,1.6K Hz.
    96 dB(0.5W/0.1m) ± 3 dB
8 Frequency Range Fo – 4.5K Hz
9 Total Harmonics Distortion Max 10 % at 1 KHz,0.5W.
10 Voice Coil Diameter 10.5 mm
11 Magnet Rare earth permanent (Nd-Fe-B) magnet Φ12.5 x 1.5mm
12 Weight 12g ± 2g
13 Appearance Should not exist any obstacle to be harmful to normal operation; damages, cracks, rusts and distortions, etc.
14 Operation Test Must be normal at program source 0.5W
15 Buzz, Rattle, etc. Should not be audible at 2.0V sine Wave between Fo to 20KHz
16 Polarity When positive voltage is applied to the terminal marked (+), diaphragm should move to the front.
17 Terminal Strength Capable of withstand 1kg load for 30 seconds without resulting in any damage or rejection.
18 Temperature Operating temperature: -20℃ to +85℃
    Storage temperature: -30℃ to +95℃

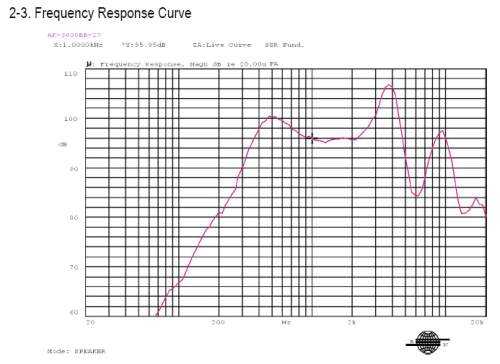

Response Data Sheet
