ITEM   SPECIFICATIONS
1 Type Dynamic speaker

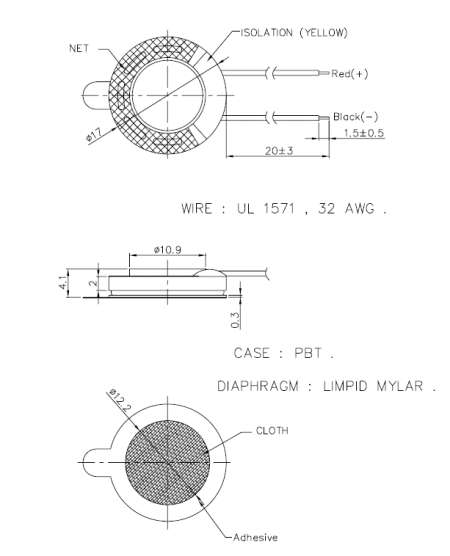

2 Dimension External diameter 17m
3 Rated Input Power 1.5 W.
4 Max. Input Power 2.0W for 1 minute.
5 Impedance 8 ohm ± 15% at 2K Hz
6 Resonance Frequency (Fo) 900 Hz ± 20% at Fo, 1V
7 Sensitivity (S.P.L.) 99dB( 1.5W/0.1m) ± 3 dB at AVE 1.0K,1.2K,1.5K,2K Hz.
    97dB( 1W/0.1m) ± 3 dB
8 Frequency Range Fo – 20K Hz
9 Total Harmonics Distortion Max. 10% at 1K Hz ,1.0W.
10 Voice Coil Diameter 8.5 mm
11 Magnet Rare earth permanent (Ferrite) magnet Φ8.2 x 1.2 mm
12 Weight 1.4g ± 0.3g
13 Appearance Should not exist any obstacle to be harmful to normal operation; damages, cracks, rusts and distortions, etc.
14 Operation Test Must be normal at program source 1.5W
15 Buzz, Rattle, etc. Should not be audible at 3.46V sine Wave between Fo to 20KHz
16 Polarity When positive voltage is applied to the terminal marked (+), diaphragm should move to the front.
17 Terminal Strength Capable of withstand 1kg load for 30 seconds without resulting in any damage or rejection.
18 Temperature Operating temperature: -20℃ to +60℃
    Storage temperature: -30℃ to +70℃

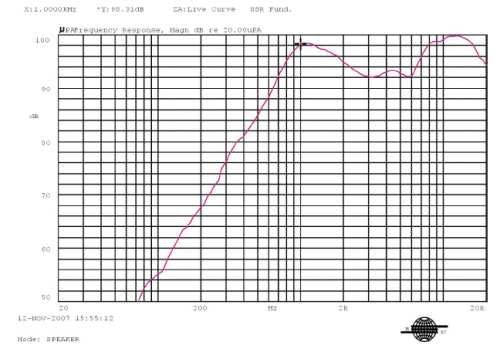

Response Data Sheet
