Home  >> 10-20mm > AS-2037E08-B33C2



10-20mm 21-36mm 36mm above Rectangular Cabinet

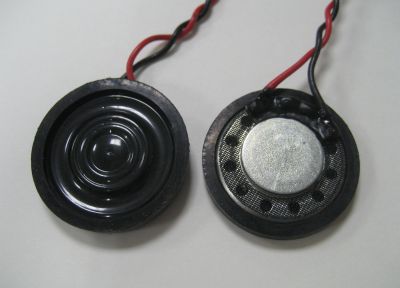

mini spekaermicro speaker

ITEM   SPECIFICATIONS
1 Type Dynamic speaker
2 Dimension External diameter 20 mm
3 Rated Input Power 0.5 W
4 Impedance 8 ohm ± 15% at 1500Hz
5 Resonance Frequency (Fo) 770 Hz ± 20% at Fo, 1V
6 Sensitivity (S.P.L.) 74dB(W/m) ± 3 dB at AVE 1.5K,1.8K,2.0K,2.5K Hz.
    90dB(0.5W/0.1m) ± 3 dB
7 Frequency Range Fo – 20KHz
8 Total Harmonics Distortion Less than 8 % at 1 KHz ,1.0V
9 Max. Input Power Must be normal at 0.7W white noise for 1 minute.
10 Voice Coil Diameter 9 mm
11 Magnet Rare earth permanent (Nd-Fe-B) magnet Φ8.0 x 1.0mm
12 Weight 2.3g ± 0.3g
13 Appearance Should not exist any obstacle to be harmful to normal operation; damages, cracks, rusts and distortions, etc.
14 Operation Test Must be normal at program source –0.5W
15 Buzz, Rattle, etc. Should not be audible at 2V sine Wave between Fo to 20KHz
16 Polarity When positive voltage is applied to the terminal marked (+), diaphragm should move to the front.
17 Terminal Strength Capable of withstand 1kg load for 30 seconds without resulting in any damage or rejection.
18 Temperature Operating temperature: -20℃ to +60℃
    Storage temperature: -30℃ to +70℃

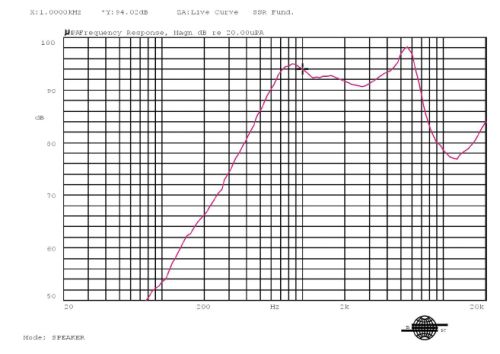

Response Data Sheet
