Home  >> Rectangular Speaker > AS-12658440W08-R4T



10-20mm 21-36mm 36mm above Rectangular Cabinet

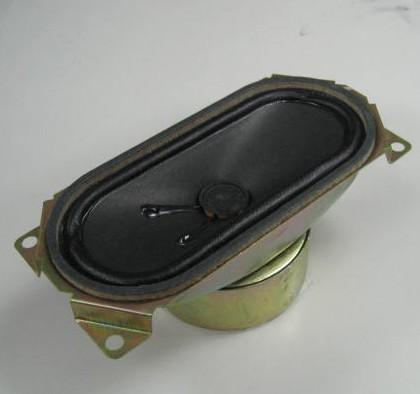

Square spekaerRectangular speaker

ITEM   SPECIFICATIONS
1 Type Dynamic speaker

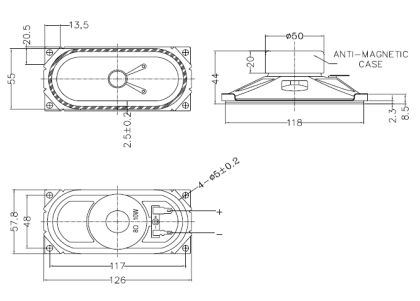

2 Dimension External diameter 126 x 57 mm
3 Rated Input Power 10 W
4 Impedance 8 ohm ± 15% at 500Hz
5 Resonance Frequency (Fo) 150 Hz ± 20% at Fo, 1V
6 Sensitivity (S.P.L.) 83dB(W/m) ± 3 dB at AVE 0.6K,0.8K,1.0K,1.2K Hz.
    102dB(1.0W/0.1m) ± 3 dB
7 Frequency Range Fo – 20KHz
8 Total Harmonics Distortion Less than 8 % at 500Hz ,1.0W
9 Max. Input Power Must be normal at 15 W white noise for 1 minute.
10 Voice Coil Diameter 13.5 mm
11 Magnet Rare earth permanent (Ferrite) magnet Φ40Xφ22x8
12 Weight 312g ± 10g
13 Appearance Should not exist any obstacle to be harmful to normal operation; damages, cracks, rusts and distortions, etc.
14 Operation Test Must be normal at program source –10W
15 Buzz, Rattle, etc. Should not be audible at 8.9V sine Wave between Fo to 20KHz
16 Polarity When positive voltage is applied to the terminal marked (+), diaphragm should move to the front.
17 Terminal Strength Capable of withstand 1kg load for 30 seconds without resulting in any damage or rejection.
18 Temperature Operating temperature: -20℃ to +60℃
    Storage temperature: -30℃ to +70℃

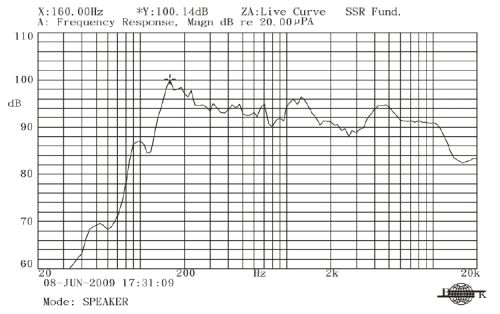

Response Data Sheet
